Ma'a'a Maualuluga Fa'apipi'i Injection Mold mo HDC Feso'ota'i Tiute Mamafa: Inisinia mo Talosaga Mana'omia
Taofi le Fetuuna'i i le Fa'atuatuaina o Soso'o.Tofo i le sa'o ma le tumau e le mafaatusalia i Feso'ota'iga Tiute Mamafa (HDC) fa'atasi ai ma la matou fofo fa'ameamea tui. Ua fa'ainisinia mo galuega -a'oga fa'apitoa, o la matou limu e maua ai feso'ota'iga tumau, maualuga-e fetaui ma tulaga tau eletise, masini, ma le si'osi'omaga.
High Precision HDC Connector Mold mold Specifications
|
Parameter |
Fa'amatalaga |
|
Igoa Oloa |
Ma'a'a Maualuluga PLASTIK Injection Mold MO HDC HEAVY DUTY SONECTOR |
|
Mea oloa |
PA6, PBT, PPS, LCP, ABS |
|
Fa'atatau i le taimi nei |
10A / 16A / 35A |
|
Fa'afeso'ota'i Resistance |
• 10A: Itiiti ifo pe tutusa ma le 3mΩ • 16A: Laʻititi ifo pe tutusa ma le 1mΩ • 35A: Laʻititi pe tutusa ma le 1mΩ |
|
Malosiaga Dielectric |
• 10A: 4kV • 16A/35A: 6kV |
|
Galulue Vevela |
-40 tikeri ~ +125 tikeri |
|
Ta'amilosaga Fa'aipoipo |
Sili atu pe tutusa ile 500 taamilosaga |
|
Fa'ailoga IP |
IP65 / IP67 / IP68 |
|
Fa'atonuga |
3-Plate Mold (2, 4 poʻo le 8 cavities) |
|
Faiga Hot Runner |
INCO/MOLD MASTER/GUNTHER Tamomo'e vevela ma 2 noseli |
|
Uamea mold |
1.2344, 1.2312, Viking, P20, SKD61, ETC |
|
Mold Standards |
Meusburger, Hasco, Misumi |
|
Le ola limu |
1,000,000 ata |
|
Masini talafeagai |
Fanuc 100~150T Injection Molding Machines ma Robotic Automation |
|
Tusipasi |
ISO9001, ISO16949 (IATF 16949), ISO14000 |
Aisea e maua ai e le matou HDC Connector Mold e le mafaatusalia faatinoga
Sa'o Fa'ainisinia mo Fa'apalepale Mata'utia
Maumau, Maualuluga{0}}Sa'o Fa'alili
Ausia le micron-tulaga tutusa i luga o fa'amaufa'ailoga, tulaga fa'amau, ma fa'amau fa'apipi'i - taua mo fa'amaufa'ailoga IP67/IP68 fa'atuatuaina ma feso'ota'iga eletise.
Meafaigaluega Maua'i & Tulaga Fa'atonu
Fausia i tulaga Meusburger, Hasco, ma Misumi, faʻamautinoaina le fesuiaʻiina o vaega ma le faʻaogaina o le lalolagi.
Sa'o Fa'amaonia
O la matou -site Hexagon CMM Inspector (fa'apipi'iina i<±1µm accuracy) performs real-time SPC during sampling and production, ensuring every cavity meets specs.

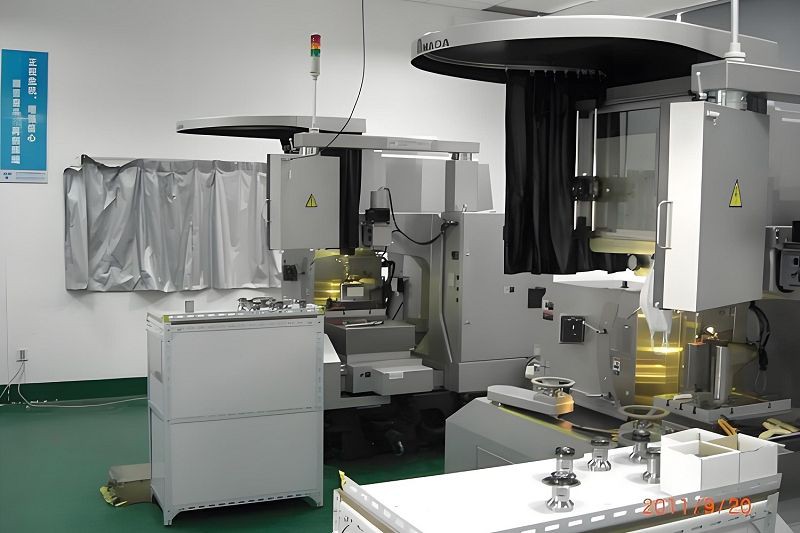

Fa'aaliga Potu Meafaigaluega

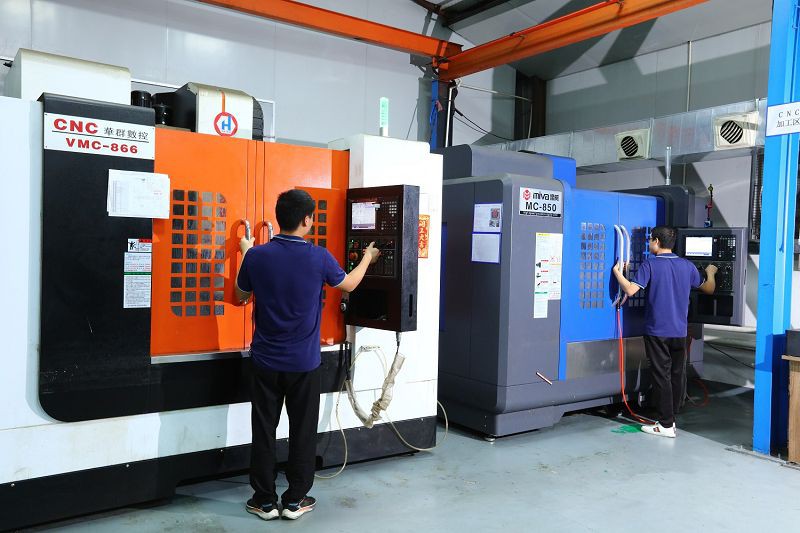

Fa'aaliga Vaega o Gaosia
Le fa'amalieina Malosi & Umi
Miliona-Ta'amilosaga Fa'amautinoa
O vaega autu e fa'aogaina mai u'amea fa'apitoa (Viking mo cavities/cores, SKD61 mo sliders, P20 mo mold base) fa'amautinoa se1,000,000+ ola fa'aolai lalo o tulaga masani o gaosiga.
Fausia mo Mea Saua
Fa'atonu fa'apitoa e fa'agaioi ai palasitika fa'ainisinia -maualuga, abrasive, ma fibre{1}}(PPS, LCP, PBT, PA66) e aunoa ma le fa'aleagaina.
Fa'amaonia Mautu
Ole fausaga malosi ole 3-plate (2 po'o le 4 cavities) e fa'aitiitia ai le fa'afefe i le taimi ole tui maualuga, aemaise lava le taua mo feso'ota'iga 35A.
Fa'atonuina mo le lelei ma le lelei
Tomai Hot Runner
Tu'ufa'atasi faiga ta'avale vevela (fa'ailoga e fa'atatau i mea e mana'omia) e fa'amautinoa ai le fa'atumu paleni, fa'aitiitia le mamafa o le mamafa, ma toetoe lava leai se otaota o le tamo'e – e taua tele mo le -gao'oga lelei o feso'ota'iga-maualuga.
Otometi Sauni
Fuafuaina mo le tu'ufa'atasiga lelei ma le Fanuc 100T-150T masini fa'apipi'i ma faiga fa'apolokalame, fa'agaoioi le gaosiga o moli ma le tulaga lelei o vaega.
Fa'agasologa o Fa'agasologa
Sa'o lelei pulega fa'amama (laina vai, fa'amea fa'avevela) fa'amautinoa le fa'amalieina toniga ma fa'aitiitia vaega taua, e taua tele mo le fa'atumauina o fa'ailoga IP ma le fa'aogaina o le eletise.
Lagolago malosi e le Tusipasi & Mafai
Faiga Fa'amaonia Tulaga Lelei
Gaosi i lalo o le tausisia atoatoaISO 9001 (Pulega Fa'apitoa), IATF 16949 (Tausaga Tulaga - fa'atusa e ISO16949), maISO 14001 (Pulega o le Siosiomaga).
Fa'atosina Gaosia Arsenal
O a matou meafaigaluega faʻapitoa e tuʻuina atu faʻapalepale talafeagai:

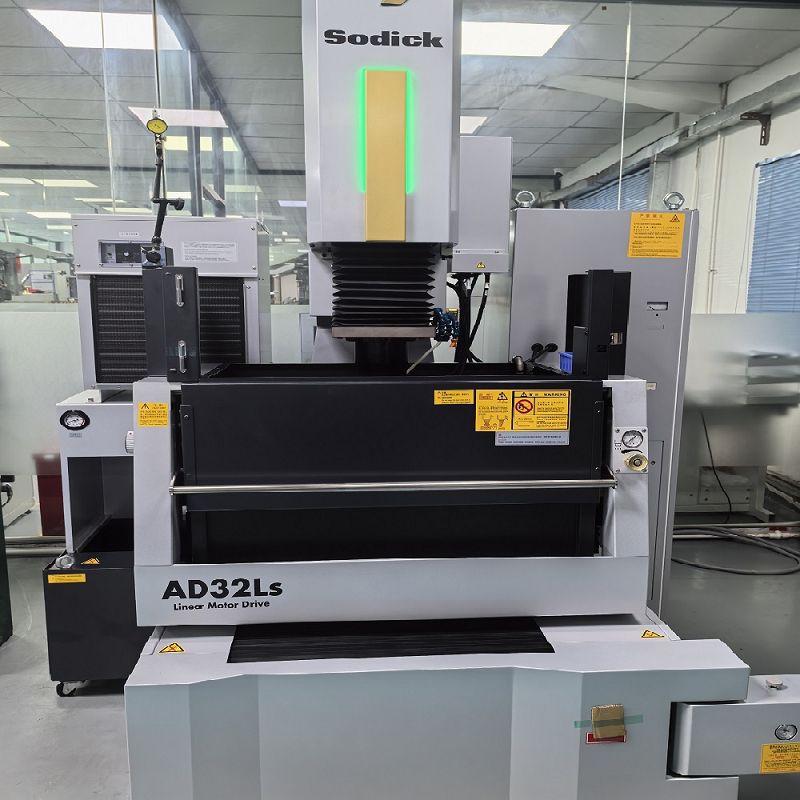

● EDM (6masini):Sodick AD32LS (±2µm), Makino EDGE2/EDGE3 (±5µm) mo fa'amatalaga lavelave i totonu/cavity.
● Uaea-Oti EDM (7masini):Sodick AQ360LS (± 2µm sa'o), Seibu M50B mo tu'i sa'o, fa'aofi, ma fa'asologa.
● olo (10 masini):Yutong 618S olo olo (<±2µm) for critical components.
Comprehensive Metrology Lab
● Tagata Asiasi Hexagon CMM (Su'esu'ega Fua, Fa'amaoniga GD&T)
● 3x Nikon Projectors (Su'esu'ega Fa'amatalaga)
● 8x Nikon Altimeters
● 4x Wanhao 2D Vaaiga Faiga
Fa'ainisinia mo Mana'oga a Au Alamanuia
O la matou HDC Connector Mold e maua ai vaega faʻamaonia i totonu o le fanua:
Robotics & Automation
Connectors molded in PPS/LCP withstand continuous flexing, high EMI environments, and repeated mating cycles (>500) i lima robotic ma kapoti pulea.
01
Fauga & Masini Mamafa
O feso'ota'iga ABS/PA6 e tumau i le tete'e tele, pefu, ma le susū (fa'amaonia IP68) i luga o va'a eli ma va'a, e fa'amoemoeina mai le -40 tikeri i le +125 tikeri.
02
Fela'uaiga o nofoaafi
O limu e maua ai feso'ota'iga e fetaui ma tu'utu'uga o le afi/asu/o'ona (fa'aaogā le PBT/PA6 fa'amaonia) ma fa'amatalaga vibration mo le fa'atonutonuina o nofoaafi.
03
Tufatufaina o Malosiaga
Maualuluga-o feso'ota'iga 35A fa'atasi ma le itiiti ifo pe tutusa ma le 1mΩ fa'afeso'ota'i fa'afeso'ota'i ma le 6kV malosi dielectric, e mana'omia mo le saogalemu o le fa'aolaina o le paoa i mea fa'atau pisinisi.
04
Fa'agaoioiga Saua (Tapa'a/Fa'auma)
O feso'ota'iga PPS/LCP e tetee atu i vaila'au fa'amama ausa, vevela maualuga e lata ane i ogaumu fa'amago, ma mea'ai abrasive.
05
E Faapefea Ona Tatou Galulue?
Teu fa'afaigaluega i le Sa'o, Paaga ma Fa'atuatuaina
Aua ne'i fa'ataga le le fetaui o limu e fa'aletonu ai le fa'atinoga o lau feso'ota'iga HDC. O a matou mea faigaluega fa'apitoa, lagolago i faiga fa'amaonia ma -meafaigaluega fa'aigoa pito i luga, e tu'uina atu le sa'o, tumau, ma le lelei e mana'omia mo fa'aoga -maualuga.
Sauni e Tu'uina atu le lalolagi-vasega mamafa-So'otaga Tiute?
Fa'afeso'ota'i matou i le asōmo se fa'atalanoaga fa'atekinisi au'ili'ili, au'ili'iliga o fa'asolo, po'o le fa'atulagaina o se su'etusi o la matou fale fa'amaonia IATF 16949-. Ia avea o matou tomai i mea fa'apipi'i sa'o maualuga e avea ma ou avanoa fa'atauva.
Protech -Lau fa'atuatuaina Saina mea faigaluega fa'atau mo Fofo Fa'ata'oto mo Tulaga Mana'omia
(Fa'amaonia: ISO 9001, IATF 16949, ISO 14001)
